Features
 Clear voice, crisp sound
 Minimize all unwanted noise
 Easy to use
 Compatible with all PartyBox speakers
 Sing out all night long
 Rechargeable battery
 Stable 2.4GHz connection
 Packaged in FSC-certified paper printed with soy ink

Technical Specifications
 Carrier Frequency: 2404 - 2478MHz
 Encryption: AES - 128
 Working Range: 30m (100ft)
 Latency: < 12ms
 Frequency / Channel selection: Adaptive channel
selection
 Frequency Response: 50Hz - 15KHz
 Dynamic Range: 100dB@ 1K Hz
 Signal -to -Noise: 59dBA
 THD: < 1% @ 94dB SPL, 200 - 10KHz
 Microphone Rechargeable Battery: 600mAh, 3.7V
Li-ion battery
 Dongle Battery: 700mAh 3.7V Li-ion battery
 Playtime of Microphone: up to 20 hours
 Playtime of Dongle: up to 12 hours
 Microphone battery charge time: < 2.5H in off
mode
 Dongle battery charge time: < 2.5H in off mode
 Microphone Head: 16mm ECM
 Transimitting power: < 10dBm
 Receiver maximum output level: < 1V RMS
 Microphone Dimensions (W x H x D): 45.5 x 224.5 x
42.5mm / 1.79’’ x 8.84’’ x 1.67’’
 Microphone Weight: 270 g / 0.6 lb
 Dongle Dimension (W x H x D): 42 x 96.5 x 18mm /
1.65’’ x 3.8’’ x 0.71’’
 Dongle Weight: 43 g /0.095 lb
 Gift Box Dimension (W x H x D): 131 x 72 x 236mm /
5.16’’ x 2.83’’ x 9.29’’
 Gift Box Weight: 854 g / 1.88 lb
What’s in the Box

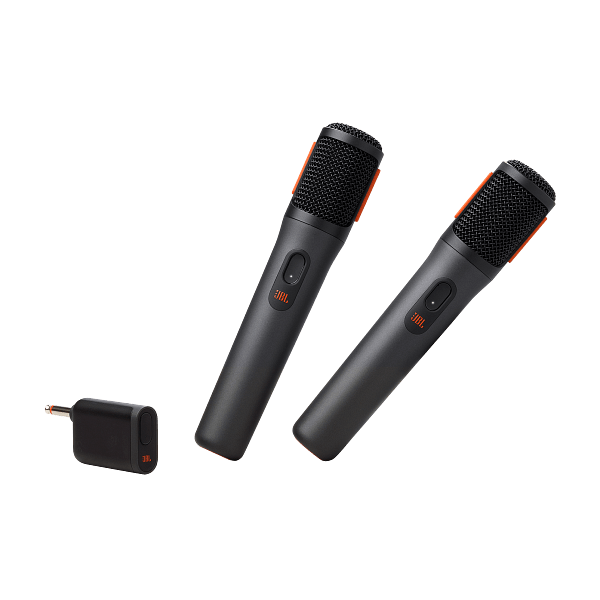

2 x JBL PartyBox Wireless mic
1 x Dongle
1 x Quick-start guide
1 x Safety Instruction and Warranty Card
1 x USB-C cable
